Flexi-Holder-Versatile, Multi-Angle DR Panel/Cassette Holder



Flexi•holder® significantly reduces retakes caused by improper cassette positioning. It permits smoother scheduling and superior radiographs– saving film, time and labor for cost effective radiographic procedures.

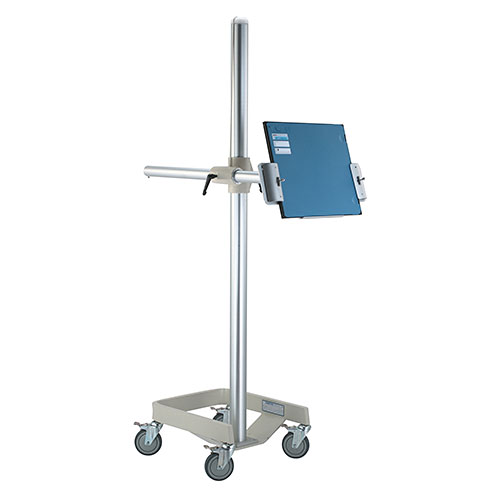

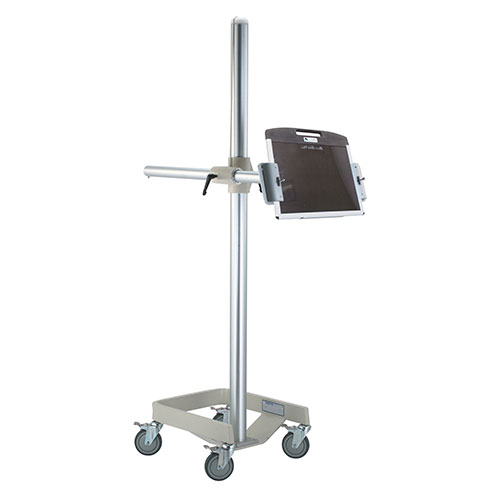

Our free-standing model features an extra wide base for maximum stability. It allows accurate radiographs to be taken from virtually any angle from floor level to 71 in + (180 cm) high. It rolls into position on large, locking casters and tilts the cassette 180˚ facing straight up, down or anywhere in between. Free-standing and tabletop models accept virtually all cassettes.


Eliminates Retakes

  • Helps eliminate retakes caused by improper cassette positioning.
  • Replaces inefficient sandbags and other "make-shift" holders.
  • Versatile Savings
  • Saves time and labor for smoother scheduling and superior radiographs.
  • Saves film and reduces radiation exposure due to minimal retakes.
  • Minimizes patient assistance and discomfort in positioning.

Flexible Arm Movement

  • Radiographs can be taken from any angle from floor level to 71” (180 cm).
  • Tilts cassette 180° facing straight up, straight down or anywhere in between.
  • Rotates cassette 360° clockwise or counterclockwise.
  • Arm rotates 360° on vertical column.
  • Arm telescopes 26” (66 cm) over the X-ray or operating room table.
  • Arm assembly is counterweighted for easy raising or lowering.
  • Optional 36” (91 cm) arm available.

Very Stable, Compact Design

  • Rolls into position on large, locking casters for stable positioning.
  • 19” x 22” x 75” (48 x 56 x 191 cm).
  • 110 lbs. (50 kg)
  • Convenient Ratchet Handles

Ratchet handles can be repositioned easily to help eliminate interference problems when positioning cassettes.

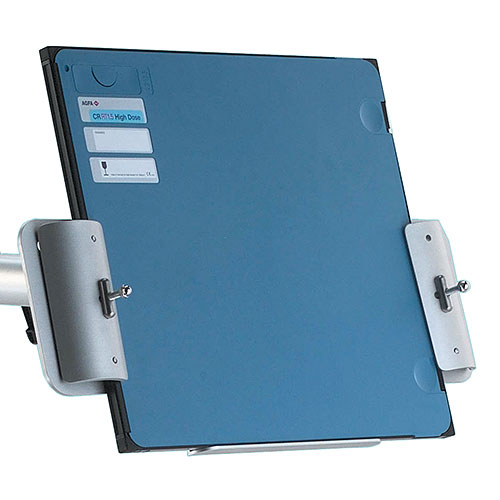

Accepts All Cassettes

  • Accepts virtually all cassettes and does not obscure cassette film area.
  • One Hand Operation

A lip on the cassette holder enables the cassette to be inserted with one hand, if necessary.

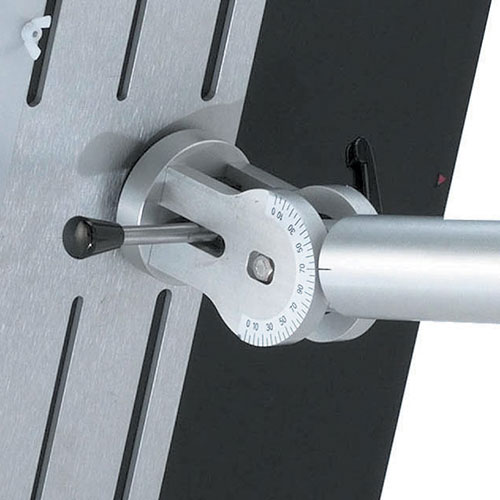

Accurate Calibration Scales

  • Column and arm calibration scales provide
    exact, repeatable angulation.

Diagnostic Applications

  • Three-way studies of acute abdomens.
  • Myelograms.
  • Fractures where patient is immobilized.
  • Lateral decubitus fluid level studies of
    abdomen and chest.
  • Operating room radiography.

Therapeutic Applications

  • Radiation therapy verification films
    (portal films).
  • Localization for tangential breast, isocentric
    or oblique fields.
  • Simulation without fluoroscopy.
  • Implant source localization by
    orthogonal films.
